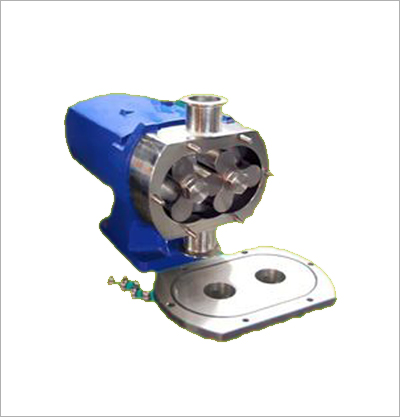

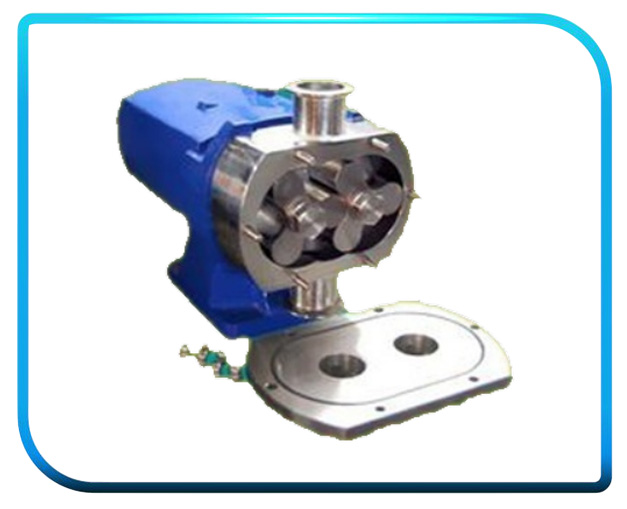

Manufacturer of Lobe Pump
Hardened Gears for Heavy Duty Easy Maintenance Leakless/ Leak prrof Design High Flow at moderate Pressure Reliable, Low operating & maintenance cost.

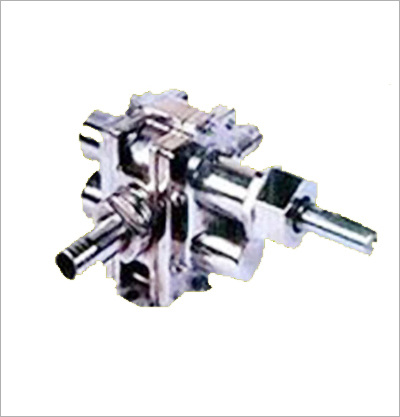

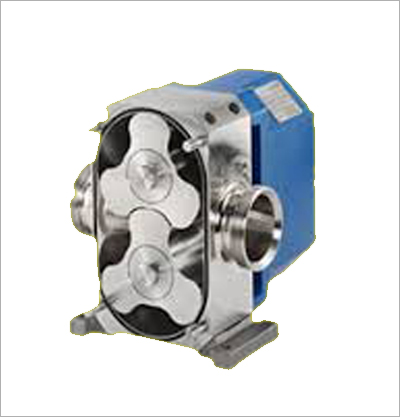

TRI-LOBE PUMP

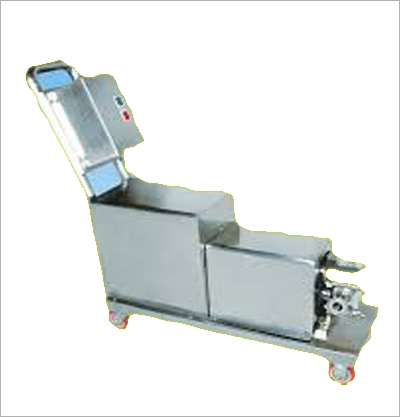

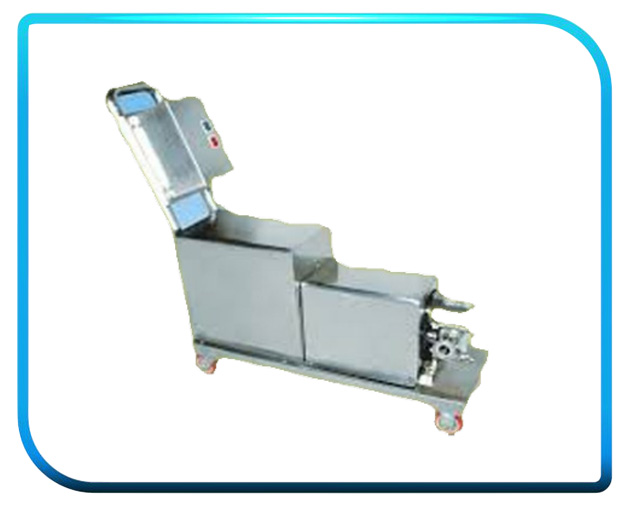

VFD - Trolley Mounted

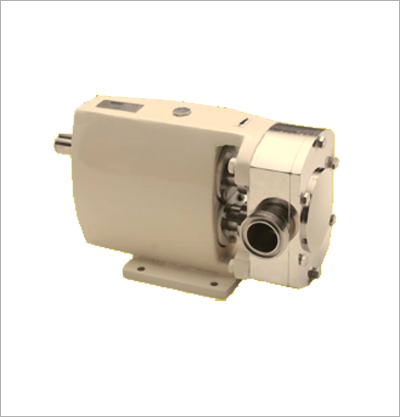

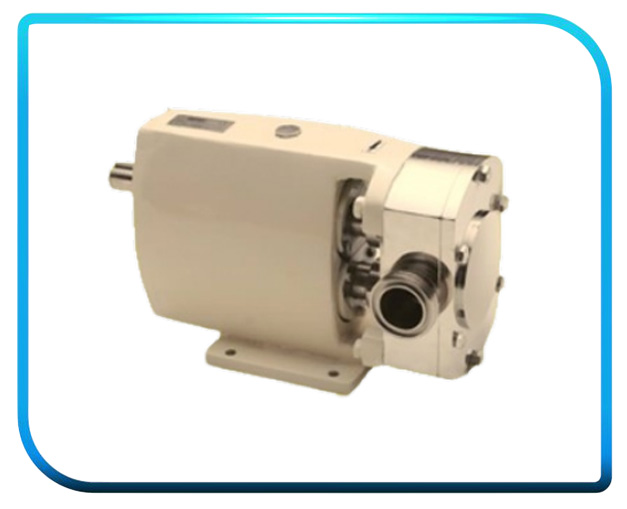

ALFA SERIES
Alternative Design Features :
Unique Pump System are manufactures precisely to satisfy customers requirement. This is achieved by machining the ports to suit pipe work connection and to incorporate various features and facilities. The most important salient features are illustrated above.
Trouble Free Operation :
Unique Pump System accurate like conventional pumps. No operating difficulties like conventional pumps master sears accurate dimensions in drive shafts, bearing and timing gears ensure smooth operation even under continuous fill load
Slient Features :
Unique Pump System are meant for high mechanical efficiency, means less energy consumption-Lower operating cost-Smaller motors-Lower drive costs. Rotor shafts seated by hygienic mechanical seals or by packed glands selected for the duty conditions. Generous distance separating the pumps head from the gear case.
Positive uninterrupted displacement by specially designed rotors creates a steady gentle pumping action which does not shear, agitate the products.
Positive uninterrupted displacement by specially designed rotors creates a steady gentle pumping action which does not shear, agitate the products.
Easy-clean pump head which is idea for in-place cleaning or can be rapidly stripped for manual cleaning, without disconnecting the pipe work.
Post threaded or flanged to suit customer's requirments. Puming chambers without pockets or crevices to harbour bacteria or contaminents.No contact between moving parts and no internal bearings in pump head. Solid stainless, Isi 316 Quality pumps head, rotors and shafts. food quality rubber covered. Robust cast iron gear case enclosing oil lubricated rolling bearings are precision timing gears.
Positive Benefits :
Compact construction reducing weight and installation space. Pumps head easily dismantles without pipeline disconnection. Reversible flow without modification. Non contact of moving parts in pumping product area. Rectangular and enlarged inlet parts available for high viscosity and suspended solid products.
Hygienic construction :
AISI 316 stainless steel liquid contact parts. pumps and gear housing separated no risk of oil mixing with product. pumps head constructed for inline cleaning.
Low maintenance cost :
High capacity roller bearing,increased life. Easily removal cartridge of shafts, gears and bearing for rapid maintenance reduce down time.
Industrial Use for continual transfer, dosage, injection, filling,mixing :
Daily Products :
Beverages and Wines, Cakes and Baked Goods Fruit and Vegetable, Meat and fish, Animal Food Convenience food and canned ,Sugar and Starches Oils and Fat Condiments and Dressings, Misc.Ingredients and Additives.
Paints,Links and Coatings :
Water-based panits-Lacqures-Varnish-Pigments-Plasticizer-Earth-Acrylic adhesive-Resins-Hardeners-Catalysts-Colorings inks-Glycerin-Wax-Emulsins(water/oil and waste/soap).
Waster water Treatment :
Polymers-Chemical Feed.
Soap & Detergents :
Soap & Surfactants-soda lye-Additives- Builders-Glycerine-animal Fastand Vegetable Oils-amines-Enzimes- Concentrated dyes and perfumes Caustics-Brine and Sodium hydroxid- Nigre Bleaches-Fatty acids-Deinized water.
Cosmetics and Pharmaceuticals :
Oils-cream( Beauty cream,toothpaste,etc.) lotoins-gets-mills-iquid-soap-Shampoo Ointments-Syrups- Emulsions-Aroma extracts Liquid pharmaceutial products-Additives-Active ingredients-Reagents-Varous cosmetic Foundations, etc.
Manufactured Products and Processes :
Phytosanitary products (fungicides, Liquid fertilizer,etc) Plasturgy(Polyhdric alcohols, isocyanates)-Acid effluents for Surface trearment-Polyments.
Milk-Cream-Stirred yoghurts-Fresh cream-ice Cream-Condensed Milk Pudding-Melted cheese-fermented agents-Flavorings-Derssert cream-liquid sugar,etc..
Beverages-Alcohol-Liquid-Wine-Beer-Fruit Juice-Syrups-Yeasts-Liquid Suger-Flavoing-Colorings,etc..
Dough-Fillings-Garnishes and coating-Yeats-Liquid eggs-Better(Pancake Better) Chocolate-Flavoring- Colorings-Indregdients and additives, etc..
Tomato concentrates-Fruit concentrates-Juice-Purees-Stewed fruit-Fruit jelly-Oils and vegetable fats-Gum Arabic,etc..
Oils and animal fats (edible tallow,lard,etc) Blood products-Galatin-Oils Molasses-Brine-Enzymes-Lactic acid-Ascorbic acid-Chlorides,etc...
Dressings-Vegetable and fish soup-Condiments (Tomato sauce, Ketchup, tomato puree, crushed tomatos)-Baby food-Oils-Brine-jelly,etc..
Liquid sugar-Honey-Liquors-plup-Juice-Glucose-Starch and by-products etc..
Mayonnaise-Tomato concentrate-Ketchup -Mustard-Dressings-Vinegar-etc Yeasts-Fermented agents- Acid (Lactic acid, formic acid ascorbic acid, etc) Flavorings-Colorings, etc..
Fat Edible-Meat emulsions-Flavorings-Colorings.
Salient Features Of Unique Rotary Lobe Pumps :
Unique Pumps are meant for high mechanical efficiency, means less energy.
Consumption- Lower cost smaller motors- Lower drive cost.
Easy clean pump head which is ideal for In place cleaning, without disconnecting the pipe works.
Positive, uninterrupted displacement by specially designed Rotors create a steady pumping gently pumping action which dose of shear, agitate or aerate the product.
Pumping chambers without pocket or crevices to harbour bacteria or contaminants. No contact between moving parts and no internal bearing head.
Rotor shafts sealed by hygienic mechanical seals or by packed glands selected for the duty conditions.
Solid stainless steel ASI 304, ASI 316 Quality Pump head, rotors and shafts.
We provide duty designed pump as per customer requirement.
Unique Lobe pumps are specified for the upmost efficiency in fluid handling throughout the bakery, Brewing, Chemicals, Cosmetic, Confectionary, Dairy, Food, Pharmaceutical and allied industries.
Performance :

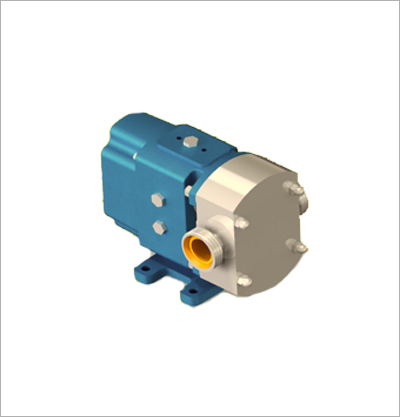

Low Pressure Standard Models.
Medium Pressure Teflon Bearing Models.
High Pressure Overhung Bearing Models.
Important Factors to be considered :
Pump inlet connection should always be flooded to ensure maximum efficiency.
Mount pump as close as possible to supply vessel.
Protection is essential against line blockage or value closure when using positive displacement Pumps by utilizing one of the following methods.
a) Pressure relief Valve built in to Pump Head.
b) Pressure relief Valve in Discharge Line.
c) Torque limiting device between Pump & drive.
d) Overload Trip on Drive
e) Where the possibility exits of solid foreign matter in product protection must be taken in the suction line by installing a filter or trap, when sensitive products.
Drive Units : Available mounted on steel base plate with suitable guard.
Constant Speed : Geared Motor.
Variable Speed : Enclosed Belt Drive. Mechanical Electrical.
Portable Units : Other designs to customers specific requirements. Our well - trained Technical staff are Capable of discussing individual pumping requirements and specifications. A design office Is available for draw up non-standard pumps for special purposed applications.

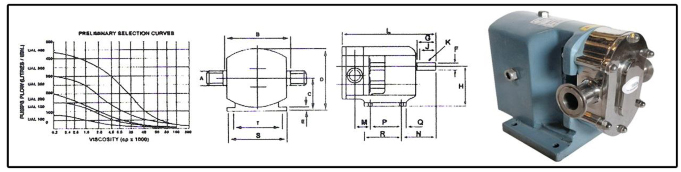

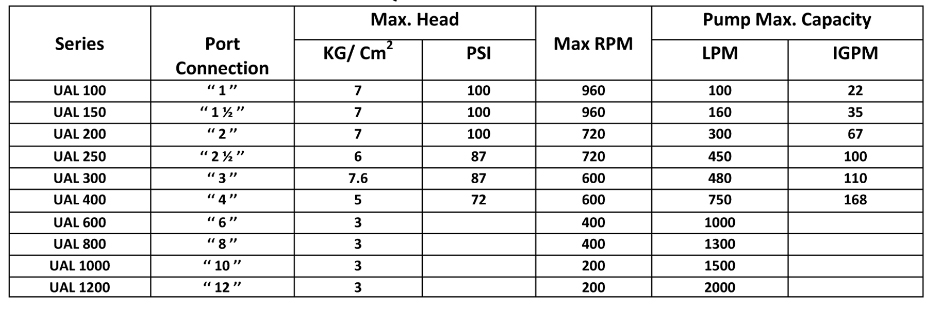

Full range of Unique Lobe Pumps Performance Data :
Series |
Port Connection |
Max. Head |
Max RPM |
Pump Max. Capacity |
||
KG /Cm 2 |
PSI |
LPM |
IGPM |
|||
UAL 100 |
"1" |
7 |
100 |
960 |
100 |
22 |
UAL 150 |
"1 ½ " |
7
|
100 |
960 |
160 |
35 |
UAL 200 |
"2" |
7 |
100 |
720 |
300 |
67 |
UAL 250 |
"2 ½" |
6 |
87 |
720 |
450 |
100 |
UAL 300 |
"3" |
7.6 |
87 |
600 |
480 |
110 |
UAL 400 |
"4" |
5 |
72 |
600 |
750 |
168 |
UAL 600 |
"6" |
3 |
- |
400 |
1000 |
- |
UAL 800 |
"8" |
3 |
- |
400 |
1300 |
- |
UAL 1000 |
"10" |
3 |
- |
200 |
1500 |
- |
UAL 1200 |
"12" |
3 |
- |
200 |
2000 |
- |
